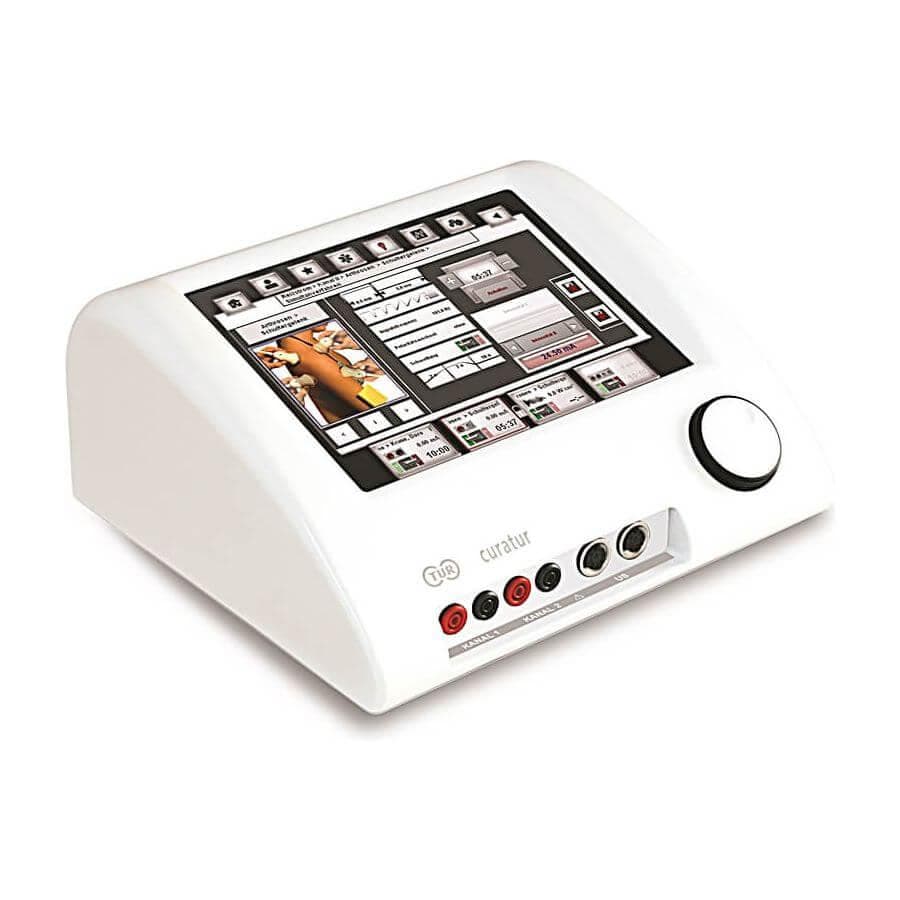

The TUR Curatur 701 is a state-of-the-art combination device for electrotherapy and ultrasound applications. With its 2-channel technology, 25 selectable current forms and an intuitive 10.4" color touch display, it offers professional therapy options for physiotherapy practices, clinics and medical facilities.
Product specification
| Device type | Combined electrotherapy and ultrasound device |
| Ultrasonic frequencies | 1MHz and 3MHz |
| Channels | 2-channel technology (optionally expandable to 4 channels) |
| display | 10.4" color touch display |
| Dimensions (L × W × H) | 29 × 27 × 13cm |
| Weight | 5kg |
| Manufacturer | TUR Curatur |
| Origin | Germany |
Indication
The TUR Curatur 701 is a professional therapy device for use in physiotherapy practices, clinics and medical facilities. It combines electrotherapy and ultrasound applications in one system and enables a wide range of treatment options.
Functions and special features
The TUR Curatur 701 is characterized by its versatile functions and high-quality workmanship:
Combined therapy system
- Electrotherapy and ultrasound combined in one device
- Simultaneous procedure: Combination of ultrasound and current forms possible
- Independent use of both forms of therapy
Ultrasound technology
- Dual frequency: 1MHz and 3MHz
- 1 MHz for deeper tissue (up to 5 cm depth)
- 3 MHz for treatments close to the surface (up to 2 cm depth)
- Treatment head 4 cm² for precise applications
Electrotherapy programs
- 25 selectable current forms with ready-made treatment protocols
- Direct current, low and medium frequency stimulation currents
- 2-channel technology for independent treatment
- Optional on 4 channels expandable for expanded therapy options
Operation and display
- 10.4" color touch display for intuitive operation
- Clear menu navigation
- Ready-made treatment protocols
- Individual programming possible
Areas of application
The TUR Curatur 701 is suitable for a wide range of indications:
Ultrasound therapy
- Pain treatment for joint and soft tissue diseases
- Promote wound healing
- Treatment of scar tissue
- Relaxation of muscle tension
- Improving blood circulation
Electrotherapy
- Pain therapy (TENS)
- Muscle stimulation and strengthening
- Treatment of paralysis
- Promotes blood circulation
- Treatment of incontinence
Scope of delivery
The TUR Curatur 701 is delivered fully equipped and is ready for immediate use:
- 1 tabletop device TUR Curatur 701
- 1 ultrasound treatment head 4 cm² (1 MHz & 3 MHz)
- 1 bottle of ultrasound gel (250 ml)
- 2 patient cables (black/red)
- 2 pairs of plate electrodes (8 × 6 cm)
- 2 pairs of viscose sponge bags (8.5 × 10 cm)
- 1 pair of elastic Velcro straps (60 cm & 150 cm)
- 1 transducer holder
- 1 power supply
- 1 device connection cable
Advantages of the TUR Curatur 701
- Combination device: Electrotherapy and ultrasound in one system
- Dual frequency ultrasound: 1 MHz and 3 MHz for different treatment depths
- Versatile: 25 selectable current forms
- Expandable: Can be upgraded from 2 to 4 channels
- Intuitive: 10.4" color touch display for easy operation
- Complete set: Extensive accessories included
- Compact: Space-saving design (29 × 27 × 13 cm)
- Quality: Made in Germany, CE marked
Technical details
Ultrasound
| frequencies | 1MHz and 3MHz |
| Transducer size | 4 cm² |
| Operating modes | Continuous and pulsed |
| Simultaneous procedure | Yes, can be combined with current forms |
Electrotherapy
| Channels | 2 (expandable to 4) |
| Current forms | 25 selectable programs |
| Types of current | Direct current, low and medium frequency stimulation currents |
| Treatment protocols | Prefabricated and individually programmable |
Frequently asked questions about the TUR Curatur 701
For which facilities is the device suitable?
The TUR Curatur 701 is designed for physiotherapy practices, clinics, rehabilitation facilities and medical centers. It is a professional medical product for therapeutic use.
Can I expand the device later?
Yes, the device can be expanded from 2 to 4 channels. This enables even more versatile treatment options and the simultaneous treatment of several areas of the body.
Which ultrasound frequency do I choose for which treatment?
1 MHz is suitable for deeper tissue (up to 5 cm deep), e.g. for hip or shoulder treatments. 3 MHz is ideal for treatments close to the surface (up to 2 cm depth), e.g. hand, foot or elbow therapies.
Is the device difficult to use?
No, the 10.4" color touch display enables intuitive operation. Ready-made treatment protocols make it easier to get started, while individual programming is possible for experienced therapists.
What does simultaneous procedure mean?
The simultaneous procedure enables the simultaneous use of ultrasound and electrotherapy. This combination can enhance the therapeutic effect and optimize treatment times.
Are the accessories included?
Yes, the device comes with extensive accessories including ultrasound head, electrodes, cables, gel and other accessories. You can start treatment immediately.
Important note
This medical product is intended exclusively for use by qualified medical or therapeutic personnel. Please note the instructions for use and safety instructions.
Manufacturer and quality
The TUR Curatur 701 is from TUR Curatur made in Germany. The company stands for high-quality medical technology and many years of experience in the development of therapy devices. The device is CE marked and meets all European medical device standards.
Conclusion
The TUR Curatur 701 is a versatile and professional combination device that combines electrotherapy and ultrasound applications in a compact system. With its 2-channel technology, 25 current forms and dual-frequency ultrasound, it offers comprehensive treatment options for a wide range of indications. The intuitive touch display and the ready-made protocols make it a user-friendly device for professional use.
Ideal for physiotherapy practices and medical facilities that are looking for a reliable and expandable therapy system.
